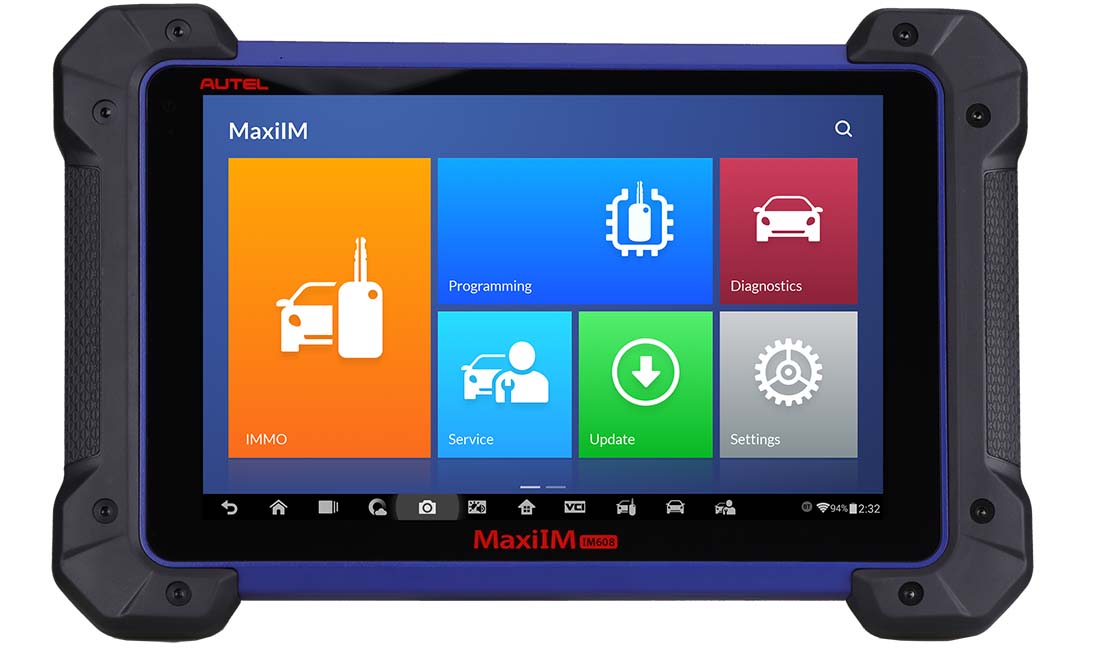

MaxiIM IM608 PRO

MaxiIM IM608 PRO

OBD2 Diagnostics And Key Fob Programmer With JVCI Tool Bundle

MaxiIM IM608 PRO is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 PRO provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.

 Description

 • Samsung Exynos 5260(2GB ROM)

• 10.1”1024x768 LCD capacitive touchscreen

• Internal reliable 64GB Memory

• Android Operating System for fast boot-up and multitasking

• Powerful combination of key programming/all system diagnostics/advanced maintenance services

• Smart Mode for guided and automated key learning

• Expert Mode for advanced key learning

• Read PIN/CS (all key lost) , key generation, key learning, remote learning

• IMMO ECU reset/adaptation, refresh/coding

• Transpronder read/write, EEPROM/MCU read/write

• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

• Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS

Specifications

Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity

Wi-Fi (802.11 a/b/g/n/ac)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Power and Battery

15000 mAh 3.8 V lithium-polymer battery

Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight

NW: 1.42 kg (3.13 lb.)

GW: 8.655 kg (19.08 lb.)

Protocols



 ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
